Tech Tips & Tricks: Setting Pump on Slayer Steam X


Sep 09, 2018

Setting Pump on Slayer Steam X

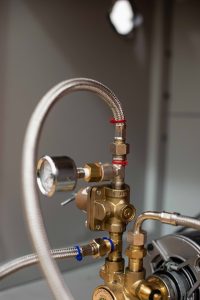

  1. Install the correct water fittings. Matching the colored zip ties on each tube coming from the machine to the corresponding color on the pump.
  2. Install the inlet water feed line to the inbound (right) side of the pump.
  3. Loosen the lock nuts on the regulator and the pump.
  4. Spin your regulator in a clockwise direction until two or three threads are showing.
  5. Spin your pump adjustment out all the way.
  6. Insert your blind portafilter
  7. Turn on the group to brew
  8. Adjust the pump pressure to read 11bar on the front of the pump gauge.
  9. Turn off group.
  10. Tighten the lock nut on the pump.
  11. Turn on the group with the blind portafilter installed.
  12. Spin the regulator in a counter clockwise direction until the gauge reads 10 bar.
  13. Turn off the group.
  14. Tighten the lock nut on the regulator.
  15. Congratulations, you’re ready to brew!
